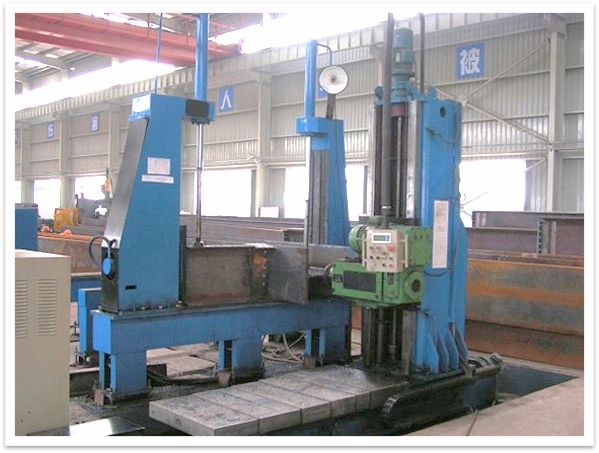

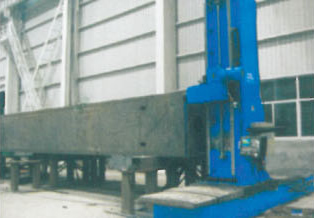

It is used for end milling of H beam, Box beam and etc, milling head can do 0-45 degree,
Specification:
Model | LFD*1520 | |
Sliding table feeding speed(mm/min) | 0-750 | |
Reverse speed of sliding table(mm/min) | 1000 | |
Vertical feeding speed (mm/min) | 0-750 | |
Milling height (mm) | 1500 | |
Job width(mm) | 2000 | |
Power head (kw) | 5,5 | |
Vertical feeding speed(mm/min) | 55-500 | |
Horizontal feeding speed (m/min) | 50-440 | |
Milling head angle (o) | 0-45 | |
Horizontal feeding motor (kw) | 3 | |
Vertical feeding motor(kw) | 2.2 | |
RPM of milling head(motor) | 1440 | |
Rpm of of milling head (main aixs) | 100p-600 | |
