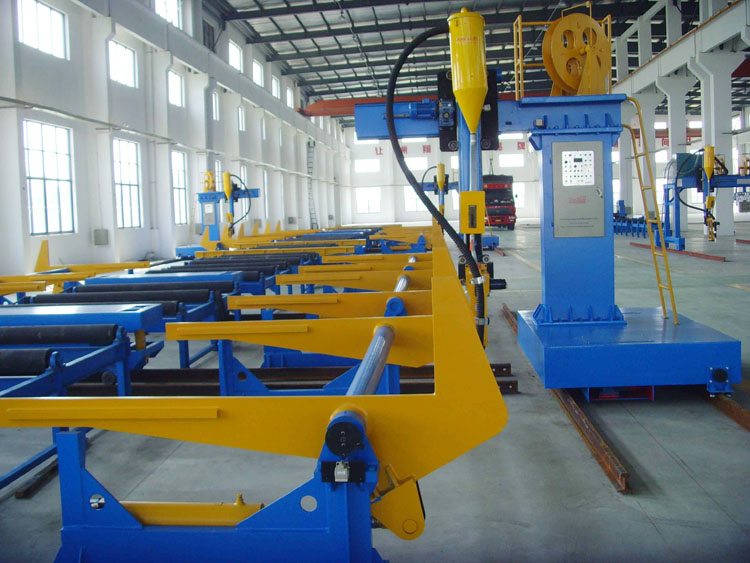

This machine is SAW Welding and sing- cantilever type, which can turn 180 degree to weld the other beam. It is controlled by imported AC frequency converter, which works stably and reliably. The function of quick returning is available. The tracking arc-guide mechanism is designed as three-axis tracking, which can guarantee centering the welding seam correctly and no arc deflection. Coming with the welding flux automatic transmission recovery system, the main machine and welder adopts integrated linkage control, which facilitates operating and has the advantage of high efficiency.
Technical Parameters
Model | BTS-1150 |
Height of Web Plate | 200-2000mm or above 2000mm |
Width of Flange Plate | 200-1200mm |
Length of H Steel | 6000-15000mm |
Model of Welding Machine | 1* MZ1250 SAW welding source |
Welding Type | 45 degree type welding |
Welding Speed | 0.3-1.5m/min |
Returning Speed | 3m/min |
Distance of Guide Rail | 1150mm |
Power of Complete Machine | 4.75kw(Not including welding machine) |
